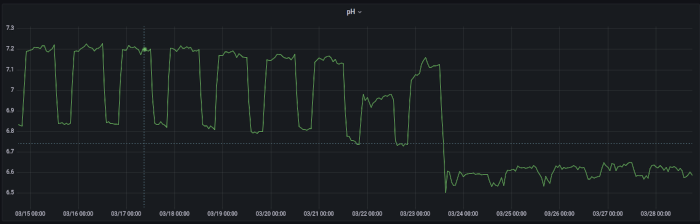

I have a pH probe in my aquarium, ever since it was installed it's shown a drop of about 0.3 when the lights came on and jumped back again when they went off. At first this seemed like it was working as expected, but something wasn't right the drop always happened immediately as the lights came on.

Lights?

In my aquarium, a pH change is expected shortly after the lights come on because it is heavily planted and photosynthesis affects the pH.

To prove if it was the light falling into the aquarium, I flipped the light over so that it didn't shine into the aquarium, the lights came on, the pH dropped exactly as before.

Interference?

Next, I turned to looking for sources of electrical interference.

I tried powering the ESP32, which was doing the data collection, from a battery rather than a mains adaptor in case it was noisy. This had no effect.

I tried moving the PSU for the lights to the other side of the cabinet away from the pH circuitry, the effect was immediately noticeable. Turns out that running high current DC lines right past the pH probe amplifier wasn't a good idea, who'd of thought 🤦.

This showed a much slower and less pronounced drop as the lights came on, I had to increase the filtering because the signal-noise ratio just jumped up.

Great, end of the story, right? Not quite because at this point that I learned that the pH should rise as the plants photosynthesise, not fall.

Temperature Compensation?

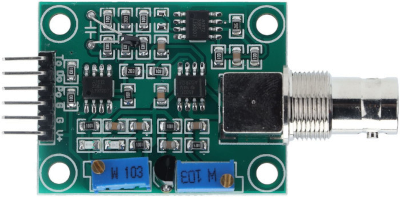

I asked Claude. It noted that some pH meters are temperature compensated and sure enough there is a PTC thermistor present on the PCB. This didn't really fit though, the compensation amount for low temperatures is tiny and if it was temperature based then it wouldn't be as rhythmic.

What Now?

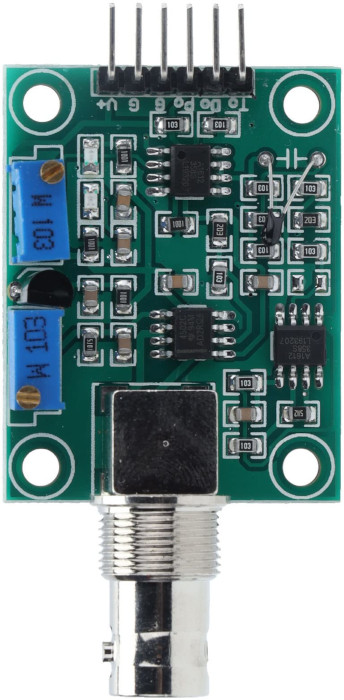

I'm going to replace the pH amplifier entirely. This excellent article fully reverse engineers the exact same PCB I have, and they don't have a lot of great things to say about it, especially when it comes to the temperature compensation part.

A Note On Calibration

Everything I have read about pH probes is that they require constant re-calibration. While I did calibrate the probe with 3 buffer solutions, I'm aware that the values I'm getting are probably inaccurate, they are, however, probably accurate enough. They also match with some test strips I have. I am more interested in the trend over time than the exact value.
